ASTM D5276 Drop Test: Analysis of the LISUN DT-60KG Automatic Double-Arms Drop Test Machine
Abstract
The ASTM D5276 drop test is a widely recognized standard for evaluating the durability of packaging materials under free-fall conditions. This paper presents a comprehensive review of the LISUN DT-60KG Automatic Double-Arms Drop Test Machine, designed to meet the ASTM D5276 drop test requirements. The study outlines the machine’s specifications, testing procedures, and performance data to demonstrate its effectiveness in ensuring the reliability of packaging during transportation and handling.
1. Introduction
In modern logistics and transportation, packaging integrity is critical to protecting goods from damage. Various standards define packaging durability testing methods, among which ASTM D5276 drop test is one of the most widely used. This test simulates the free-fall impact experienced by packages during handling and transportation.
The LISUN DT-60KG Automatic Double-Arms Drop Test Machine is a highly precise testing instrument developed for performing ASTM D5276 drop tests. It allows manufacturers to assess their packaging performance under controlled conditions. This paper explores the technical specifications, functionality, and practical applications of this drop test machine.

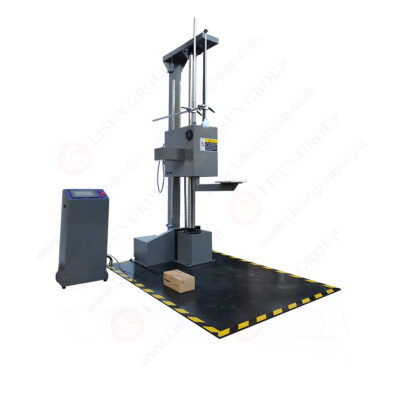

DT-60KG Automatic Double Drop Test Machine
2. Overview of ASTM D5276 Drop Test
The ASTM D5276 drop test is designed for free-fall drop testing of loaded packaging containers, such as boxes, bags, and cylindrical packages, to evaluate their structural integrity when subjected to handling impacts. The test involves dropping a package from a predetermined height onto a flat, rigid surface to observe damage or failure points.
2.1 Key Parameters of ASTM D5276
The standard specifies the following parameters for conducting drop tests:
• Drop height: Determined based on package weight and intended handling conditions
• Drop orientation: Different faces, edges, and corners must be tested
• Test surface: A rigid and impact-resistant platform
• Repetitions: Multiple drops to evaluate structural durability
The ASTM D5276 drop test ensures that packaging designs meet industry safety and quality standards, minimizing damage risks during transit.
3. LISUN DT-60KG Automatic Double-Arms Drop Test Machine Overview
The LISUN DT-60KG Automatic Double-Arms Drop Test Machine is an advanced system specifically engineered for ASTM D5276 drop tests. It provides high-precision and repeatable results, making it an essential tool for quality control in the packaging industry.
3.1 Technical Specifications

Specification
LISUN DT-60KG Details

Drop Height
300mm – 1500mm (adjustable)

Max Load Capacity
60kg

Drop Method
Pneumatic double-arm release

Test Surface
Steel impact-resistant base

Control System
Digital display with adjustable settings

Power Supply
220V/50Hz

Compliance
ASTM D5276, ISO 2248

3.2 Features of LISUN DT-60KG
The LISUN DT-60KG Automatic Double-Arms Drop Test Machine incorporates the following features:
• Automated Double-Arm Release: Ensures precise drop testing by simultaneously releasing the package from both arms.
• Adjustable Drop Heights: Allows testing at different heights to meet ASTM D5276 drop test requirements.
• Sturdy Steel Test Base: Provides a consistent and impact-resistant surface for reliable test results.
• User-Friendly Digital Controls: Facilitates easy test configuration and execution.
• Versatile Testing Capabilities: Supports various package sizes and weights.
4. Testing Procedure Using LISUN DT-60KG
To conduct an ASTM D5276 drop test using the LISUN DT-60KG Automatic Double-Arms Drop Test Machine, the following steps are followed:
4.1 Test Preparation
• Sample Selection: Choose a package that represents typical shipping conditions.
• Weight and Dimensions: Record the package’s weight and dimensions.
• Drop Orientation: Identify test orientations (face, edge, and corner drops).
4.2 Drop Test Execution
• Adjust Drop Height: Set the required drop height based on packaging standards.
• Position the Sample: Secure the package using the double-arm mechanism.
• Release Mechanism Activation: The pneumatic system releases the package, ensuring a free-fall motion.
• Impact Observation: Inspect the package for damage, recording deformation and structural integrity.
4.3 Data Collection and Analysis

Test No.
Drop Height (mm)
Orientation
Package Weight (kg)
Damage Observed

1
800
Flat Face
15
No visible damage

2
1000
Edge Drop
20
Minor dent on edge

3
1200
Corner Drop
25
Significant corner deformation

4
1500
Flat Face
30
Structural failure

5. Advantages of LISUN DT-60KG for ASTM D5276 Drop Test
The LISUN DT-60KG Automatic Double-Arms Drop Test Machine offers several advantages for packaging evaluation:
• High Precision Testing: The automatic release mechanism ensures accurate and repeatable drop tests.
• Compliance with ASTM D5276: The machine meets international packaging standards.
• Versatile Applications: Suitable for various industries, including e-commerce, logistics, and electronics packaging.
• Durability and Reliability: The machine is built with high-quality materials to ensure long-term testing capability.
• Improved Safety and Efficiency: Automating drop testing reduces manual handling risks and increases testing efficiency.
6. Applications of ASTM D5276 Drop Test Using LISUN DT-60KG
6.1 Industrial Applications
• E-commerce Packaging: Ensures shipping boxes protect fragile products.
• Electronics Industry: Tests the durability of packaging for sensitive electronic devices.
• Food & Beverage Industry: Evaluates transport stability for bottled and canned goods.
• Medical & Pharmaceutical: Ensures the safe handling of medical supplies.
6.2 Research and Development
The ASTM D5276 drop test is also widely used in packaging R&D to improve materials and design. LISUN DT-60KG assists in prototype testing and performance validation.
7. Conclusion
The ASTM D5276 drop test is essential for evaluating the durability of packaging under real-world handling conditions. The LISUN DT-60KG Automatic Double-Arms Drop Test Machine is an ideal solution for conducting precise and repeatable drop tests. Its advanced features, compliance with international standards, and versatile applications make it a valuable asset for manufacturers and quality control laboratories.
By incorporating this testing methodology, businesses can ensure that their packaging meets the highest durability standards, reducing the risk of product damage during transportation. The LISUN DT-60KG is a reliable choice for any company looking to enhance packaging performance and maintain compliance with the ASTM D5276 drop test requirements.
For more details about the LISUN DT-60KG Automatic Double-Arms Drop Test Machine, visit LISUN Official Website. https://www.lisungroup.com/news/technology-news/astm-d5276-drop-test-analysis-of-the-lisun-dt-60kg-automatic-double-arms-drop-test-machine.html
